2 门 2 适配器面板壁挂式光纤外壳
超低插入损耗和更高效的数据中心布线Fiber-MART.COM 壁挂式光纤盒是一种在建筑物中部署网络的智能方式，更加整洁、方便和灵活。
了解更多
Fiber-MART 的壁挂式互连外壳 (FWME2) 为壁挂式应用中的互连和拼接提供了便利的汇聚点。 该机柜采用精心设计的解决方案，用于机柜入口和出口处的光纤和光缆管理。
|
Part Number |
FHD-FWME2 |
Vendor Name |
Fiber-MART.COM |
|
Fiber Count |
Max.48 Fibers |
Material |
SPCC (Black Coating) |
|
Mounting Type |
Wall-Mountable |
Dimensions (WxHxD) |
13.0"x10.2"x2.3"(330.6x259.6x59.1mm) |
|
Related Product |
Adapter Panel,HD Cassette |
Compliant |
TIA/EIA-568-C.3 |
产品亮点
黑色粉末涂层 SPCC 坚固耐用的重型钢外壳
1.5mm SPCC 钢，提高光纤外壳的使用寿命。
0.15mm粉末更好地防止外壳划伤和生锈。
FHD光纤盒的安装

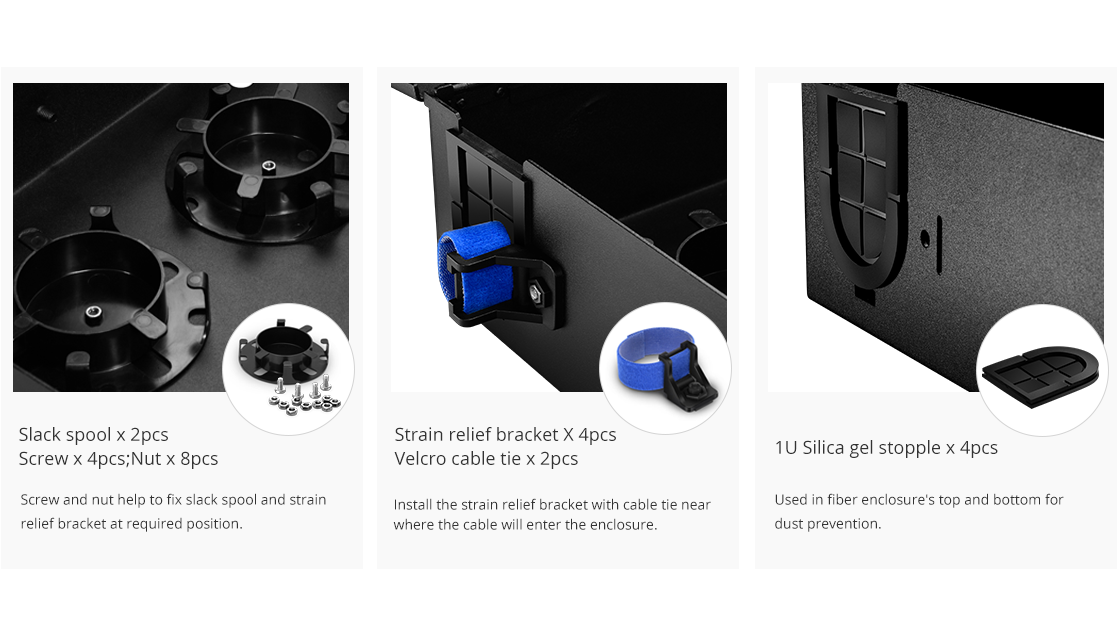

光纤外壳中包含的配件
FHD 系列外壳可选配件
多种安装方式，高密度安装在10G/40G/100G存储、电信和数据中心外壳中
-
-
-
FHD系列光纤跳线可选
-
-
-
FHD系列24F MTP高清盒式磁带可选
-
-
-
FHD 系列 24F 适配器面板可选
|
Image |
Part Number |
ID# |
Description |
Price |
|
|
FHD MTP Cassettes |
 |
FHD-1U-2MTP12LCDOM4L |
57342 |
MTP-12 to LC UPC Duplex 24 Fibers MPO/MTP Cassette, OM4, Polarity A |
US$ 99.00 |
Add to Cart |
|
|
FHD-1U-1MTP12LCDOM4L |
57024 |
MTP-24 to LC UPC Duplex 24 Fibers MPO/MTP Cassette, OM4, Polarity A |
US$ 120.00 |
Add to Cart |
 |
FHD-1U-1MTP6LCDOM4LA |
57017 |
MTP-12 to LC UPC Duplex 12 Fibers MPO/MTP Cassette, OM4, Polarity A |
US$ 55.00 |
Add to Cart |
 |
FHD-1U-2MTP12LCDSMFL |
57341 |
MTP-12 to LC UPC Duplex 24 Fibers MPO/MTP Cassette, Single Mode, Polarity A |
US$ 110.00 |
Add to Cart |
|
|
FHD-1U-1MTP12LCDSMFL |
57023 |
MTP-24 to LC UPC Duplex 24 Fibers MPO/MTP Cassette, Single Mode, Polarity A |
US$ 150.00 |
Add to Cart |
 |
FHD-1U-1MTP6LCDSMFLA |
57016 |
MTP-12 to LC UPC Duplex 12 Fibers MPO/MTP Cassette, Single Mode, Polarity A |
US$ 63.00 |
Add to Cart |
|
FHD Adapter Panels |
 |
FHD-FAP12LCDXSMF |
35488 |
Fiber Adapter Panel with 12 LC Duplex OS2 Singlemode Adapters (Blue), Zirconia Ceramic |
US$ 11.00 |
Add to Cart |
 |
FHD-FAP12LCDX10GMM |
41998 |
Fiber Adapter Panel with 12 LC Duplex OM3/OM4 Multimode Adapters(Aqua), Zirconia Ceramic |
US$ 12.00 |
Add to Cart |
 |
FHD-FAP6SCDXSMF |
35484 |
Fiber Adapter Panel with 6 SC Duplex OS2 Singlemode Adapters (Blue), Zirconia Ceramic |
US$ 8.00 |
Add to Cart |
 |
FHD-FAP6SCDZ10GMM |
51284 |
Fiber Adapter Panel with 6 SC Duplex OM3/OM4 Multimode Adapters (Aqua), Zirconia Ceramic |
US$ 9.00 |
Add to Cart |
 |
FHD-FAP8MTPHA |
35508 |
Fiber Adapter Panel with 8 MTP(12/24F) Key-up/Key-down Adapters (Black), Horizontal |
US$ 74.00 |
Add to Cart |
 |
FHD-FAP12MTPHA |
35510 |
Fiber Adapter Panel with 12 MTP(12/24F) Key-up/Key-down Adapters (Black), Horizontal |
US$ 110.00 |
Add to Cart |
