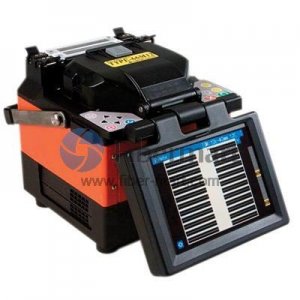

Fujikura FSM-88R带状光纤熔接机套件

Press Esc key to close this popup
  • Fujikura FSM-88R带状光纤熔接机套件

Fujikura FSM-88R带状光纤熔接机套件

商品: #16769
P/N: FUJI-FMM88R
¥83,650.00



今天 订购, 07/23/2024 之前发货, 从 武汉深圳 发货
  • 描述
  • 参数表
  • 常见问题
  • 标签

Fujikura FSM-88R 核心对准熔接器套件



描述

FSM-88R是芯对芯对准单纤熔接机,专为熔接电信用单芯光纤而设计。防震、防尘、防雨,fujikura 88r...

特征

FSM-88R是继FSM-60S之后的纤芯对纤芯对准单纤熔接机。 除了60S所创造的坚固耐用概念外,80S还具有一系列新功能,例如“自动防风器和管式加热器”,可加快熔接周期并减少操作步骤,“创新的手提箱设计”可提高熔接效率。
更快的准备、“强大的锂离子电池”可实现更长时间的操作、高分辨率更大的液晶显示屏以及多种语言的“内置操作手册”。 市场范围从骨干网络安装到高质量熔接的光电元件生产。



规格

这些功能最大限度地提高了现场熔接的生产率和可操作性。
自动防风器/管式加热器
减少拼接步骤,实现世界上最快的拼接/加热时间。
创新的手提箱设计
内置可拆卸工作台,快速启动拼接
耐环境性
全球首创6向防摔、防尘防水。
广色域液晶显示器
高分辨率 4.7 英寸显示器在日光下具有更好的可视性。
强大的锂离子电池
每次充满电可进行 200 次熔接和加热循环。
预装手册
包括操作、故障排除等在内的手册可通过
显示器。



订购信息

Applicable fibres SM (ITU-T G.652 & G.657), MM (ITU-T G.651),DS (ITU-T G.653), NZDS (ITU-T G.655),Others
Fibre Count Single
Cladding diameter 80 to 150μm
Coating diameter 100 to 1000μm
Fibre cleaved length 5 to 16mm using Sheath Clamp A, B or 5 to13mm using FH-60-250, FH-60-900
Actual average splice loss 0.02dB with SM, 0.01dB with MM, 0.04dB with DS, 0.04dB with NZDS
Splice time 7sec:SM FAST mode, 12sec :SM AUTO mode, 15sec:AUTO mode
Return loss 60dB or greater
Splicing modes 100 splicer modes are available
Splice loss estimate Several types of core deformations as well as core axis offset are taken into account for accurate loss estimate
Attenuation splice function Intentional high splice loss of 0.1dB to 15dB (0.01dB step) can be made for an inline fixed attenuator
Storage of splice result The last 2000 results to be stored in the internal memory
Magnification X /Y (300X magnification), or both X and Y simultaneously (160X magnification)
Viewing method By two CMOS cameras for intersecting fiber viewing and 4.73 inches TFT colour LCD monitor
Tension test 1.96 to 2.25N
Operating condition 0-5000m above sea level, 0-95% RH and -10 to 50°C respectively
Tube heater Built-in auto-start tube heater with 10 heating modes and up to 20 for reference
Tube heat time 13-15sec. with FP-03 protection sleeve. Total memory of 30 heating modes are available
Applicable protection sleeve length 60mm, 40mm and a series of micro sleeves
No. of splice/heating with battery 200 times of splicing and heat shrinking under with BTR-09
Power supply Auto voltage selection from 100 to 240Va.c. or 10 to 15Vd.c. with ADC-18. 14.8Vd.c. with BTR-09
Terminals USB2.0 ( Mini-B) for data and video signal transfer to PC
Wind protection Up to 15m/s wind velocity
Dimensions

146(W) x 159(D) x 150(H) mm
Including wind protector, monitor, and rubber protector
Excluding rubber foot

Weight 2.5 kg, with ADC-18 AC adaptor
2.7 kg, with BTR-09 battery
Electrode life 3000 arc-discharges



细节



标准套餐

Item Description Model No. Qty
1 Fusion Splicer FSM-80S with CLAMP-S70A 1 pc
2 AC adaptor/battery charger ADC-18 1 pc
3 AC power cord ACC-XX 1 pc
4 Spare Electrodes ELCT2-20A 1 pair
5 Cleaver CT-50 1 pc
6 Battery Pack BTR-09 1 pc
7 USB cable USB-01 1 pc
8 Quick reference guide M-80S/19S-E 1 pc
9 Warning and cautions W-70-E 1 pc
10 Instruction Manual M-70 1 pc
11 Alcohol Pot AP-01 1 pc
12 Battery charge cord DCC-18 1 pc
13 Carrying Case CC-30 1 pc
14 Screw Driver SD-01 1 pc



可选项目

Description Model No. Note
Fiber holder FH-60-250 For 250um coating
FH-60-900 For 900um coating
FH-60-LT900 For 900um Loose Tube Fiber
FH-60-DC250 For Drop Cable
FH-60-IDC250 For Indoor Cable
FH-FC-20/30 For 2mm/3mm cord
Sheath clamp CLAMP-S70A Coating diameter from 100um to 1000um
(5mm to 16mm cleave)
Included in standard package
CLAMP-S70B 900um diameter loose tube fiber (16mm cleave)
DC power cord DCC-12 For ADC-11/ADC-13/ADC-18
Cigarette lighter socket type
DCC-12 For ADC-11/ADC-13/ADC-18, Alligator clamp type
Primary Coat Stripper PS-02 For single 250um fiber
Hot Jacket Stripper HJS-02 Standard
