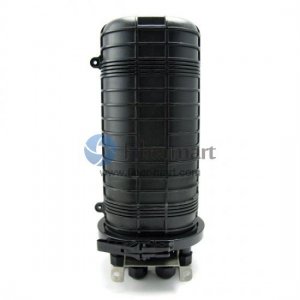

FM-S002 系列 4 入口垂直/圆顶光纤接头盒 最多可容纳 48 芯
垂直（圆顶）光纤熔接盒采用优质工程塑料制成。Fiber-Mart.COM 为垂直/圆顶光纤熔接盒提供不同的端口类型、配件和不同的光纤芯数。 垂直光纤接头盒的主要应用是有线电视、电信和光纤网络。 它们适用于保护直通和分支应用中的光纤接头，可用于架空、管道和直埋光缆项目。 主要特征
主要技术参数
规格
样本图片 |
| Outside dimension (LxD) | 435mm×190mm |
| Weight (excluding outside box) | 2500g-3100g |
| Number of inlet/outlet ports | 4 |
| Diameter of fiber cable | Φ8mm - Φ16mm |
| Capacity of FOSC | Bunchy: 12—96(fibers) |
| Ribbon: 288(fibers) |
主要成分
|
No. |
Name of components | Quantity | Usage | Remarks |
| 1 | FOSC cover | 1 piece | Protecting fiber cable splices in whole | Internal diameter: |
| 355 ×150(mm) | ||||
| 2 | Fiber optic splice tray (FOST) | Max. 6 trays (bunchy) Max. 4 trays (ribbon) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces) |
| 3 | Fiber holding tray | 1 pcs | Holding fibers with protective coat | |
| 4 | Foundation | 1 set | Fixing fiber cable, reinforced core and FOST | |
| 5 | Base | 1 set | Fixing internal and external structure | |
| 6 | Seal fitting | 1pieces | Sealing between FOSC cover and base | |
| 7 | Pressure testing valve | 1 set | After injecting air, it is used for pressure testing and sealing testing | Configuration as per requirement |
| 8 | Earthing deriving device | 1 set | Deriving metallic parts of fiber cable in FOSC for earthing connection | Configuration as per requirement |
主要配件及专用工具
|
No. |
Name of accessories | Quantity | Usage | Remarks |
| 1 | Heat shrinkable protective sleeve | Protecting fiber splices | Configuration as per capacity | |
| 2 | Nylon tie | Fixing fiber with protective coat | Configuration as per capacity | |
| 3 | Heat shrinkable fixing sleeve (single) | Fixing and sealing single fiber cable | Configuration as per requirement | |
| 4 | Seal tape | Fixing and sealing mass of fiber cable | Configuration as per specification | |
| 5 | Branching clip | Branching fiber cables | Configuration as per requirement | |
| 6 | Earthing wire | 1 piece | Putting through between earthing devices | |
| 7 | Desiccant | 1 bag | Put into FOSC before sealing for desiccating air | |
| 8 | Labeling paper | 1 piece | Labeling fiber | |
| 9 | Special wrench | 1 pieces | Tightening nut of reinforced core | |
| 10 | Metal hoop | 1 set | For wall mounting and pole hugging | |
| 11 | Buffer tube | To be decided by customers | Hitched to fibers and fixed with FOST, managing buffer | Configuration as per requirement |
| 12 | Aluminum-foil paper | 1 piece | Protect the bottom of FOS |
