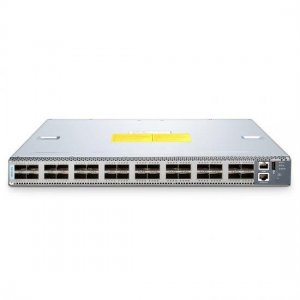

32端口10GbE SFP+ 带 2端口40GbE QSFP+ 网络交换机 S5850-32S2Q
S5850-32S2Q 参考设计是具有本机 100GE (4x25G SerDes) 上行链路的高密度 10G/40GE 平台，支持多种外形尺寸，并包括适用于数据中心/SDN/Openflow 和企业的 Fiber-mart 开放式交换机平台 (OSP) 参考软件 应用程序。
S5850-32S2Q 参考设计为数据中心主干/叶子交换机提供了全面的解决方案，具有突出的网络可视性功能。 它也是第一个启用 OAM 和 PTP 等运营商域功能的太比特平台。 该参考设计配备了先进的SDK包，带有产品化的CLI，供客户进行SDK级配置和验证。
|
Switch Class |
Layer2/3, Dater center, Metro |
Non-blocking Throughput |
400Gbps |
|
10-Gigabit SFP+ |
32 |
Switching Capacity |
800Gbps |
|
40-Gigabit QSFP+ |
2 |
CPU |
Freescale PowerPC P1010 |
|
Typical/Max Power Draw |
120W/150W |
System Memory |
2 GB |
|
100/1000 Mgmt Ports |
1 |
Flash Storage Memory |
2 GB |
|
RS-232 Serial Ports |
1 (RJ-45) |
Packet Buffer Memory |
9 GB |
|
USB Ports |
1 |
Max VLANs |
4094 |
|
Packets/Second |
1200Mpps |
Max MAC Entries |
128K |
|
Jumbo Frames |
9600 Bytes |
Enclosure Type |
Rack-mountable 1U |
|
Hot-swap Power Supplies |
2(1+1 redundancy) |
Dimensions (H x W x D) |
43.6x 440x400mm |
|
Hot-swappable Fans |
4(N+1 redundancy) |
Weight(With one PSU) |
7.0kg |
产品亮点
-
-
-
32 个 SFP+ 端口
32 个 10GBASE QSFP+ 以太网端口。
-
-
-
2 个 QSFP+ 端口
2 个 40GBASE QSFP+ 以太网端口
-
-
-
多节点冗余
双电源模块和四个风扇，保证不间断的性能。
型号比较
|
Image |
Part Number |
ID# |
Description |
Price |
|
|
10G SFP+ Transceivers |
 |
SFP-10GSR-85 |
58773 |
10GBASE-SR SFP+ 850nm 300m DOM IND Transceiver |
US$ 16.00 |
Add to Cart |
 |
SFP-10GLRM-31 |
11590 |
10GBASE-LRM SFP+ 1310nm 220m DOM Transceiver |
US$ 34.00 |
Add to Cart |
 |
SFP-10GLR-31 |
58774 |
10GBASE-LR SFP+ 1310nm 10km DOM IND Transceiver |
US$ 34.00 |
Add to Cart |
 |
SFP-10GER-55 |
11592 |
10GBASE-ER SFP+ 1550nm 40km DOM Transceiver |
US$ 180.00 |
Add to Cart |
 |
SFP-10GZR-55 |
11595 |
10GBASE-ZR SFP+ 1550nm 80km DOM Transceiver |
US$ 400.00 |
Add to Cart |
 |
SFP-10GZRC-55 |
29799 |
10G SFP+ 1550nm 100km DOM Transceiver |
US$ 500.00 |
Add to Cart |
|
40G QSFP+ Transceivers |
 |
QSFP-SR4-40G |
17931 |
40GBASE-SR4 QSFP+ 850nm 150m MTP/MPO Transceiver for MMF |
US$ 55.00 |
Add to Cart |
 |
QSFP-CSR4-40G |
34912 |
40GBASE-CSR4 QSFP+ 850nm 400m MTP/MPO Transceiver for MMF |
US$ 70.00 |
Add to Cart |
 |
QSFP-LX4-40G |
35205 |
40GBASE-LX4 QSFP+ 1310nm 2km LC Transceiver for SMF&MMF |
US$ 340.00 |
Add to Cart |
 |
QSFP-IR4-40G |
34913 |
40GBASE-LR4L QSFP+ 1310nm 2km LC Transceiver for SMF |
US$ 340.00 |
Add to Cart |
 |
QSFP-PIR4-40G |
34917 |
40GBASE-PLRL4 QSFP+ 1310nm 1.4km MTP/MPO Transceiver for SMF |
US$ 220.00 |
Add to Cart |
 |
QSFP-LR4-40G |
24422 |
40GBASE-LR4 and OTU3 QSFP+ 1310nm 10km LC Transceiver for SMF |
US$ 340.00 |
Add to Cart |
 |
QSFP-PLR4-40G |
35209 |
40GBASE-PLR4 QSFP+ 1310nm 10km MTP/MPO Transceiver for SMF |
US$ 380.00 |
Add to Cart |
 |
QSFP-ER4-40G |
35211 |
40GBASE-ER4 and OTU3 QSFP+ 1310nm 40km LC Transceiver for SMF |
US$ 1,500.00 |
Add to Cart |
