24芯 2进2出 FM032 系列水平光纤接头盒

Press Esc key to close this popup
  • 24芯 2进2出 FM032 系列水平光纤接头盒

24芯 2进2出 FM032 系列水平光纤接头盒

商品: #2508
P/N: FM032H-2IO-24
¥525.00



今天 订购, 06/20/2024 之前发货, 从 武汉深圳 发货
  • 描述
  • 参数表
  • 常见问题
  • 标签

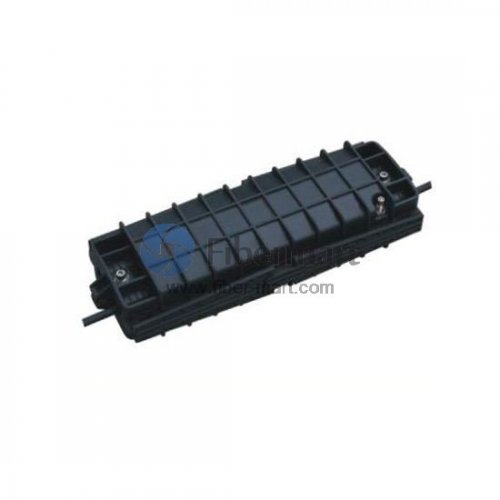

24 芯 2进2出 FM032 系列水平光纤接头盒





描述

水平(内联)光纤接头盒由优质工程塑料制成。 Fiber-Mart 为水平光纤接头盒提供不同的端口类型、配件和不同的光纤芯数。
Fiber-Mart 的接头盒适用于保护直通和分支应用中的光纤接头,可用于架空、管道和直埋光缆项目。



主要特征

  • 适用于普通光纤和带状光纤。
  • 所有部件齐全,操作方便。
  • 熔接盘采用重叠式结构,方便安装。
  • 光纤弯曲半径保证40mm以上。
  • 使用普通扳手即可轻松安装和重新安装。
  • 卓越的防拆卸螺丝开启型,可保护光纤和接头,确保耐用性。
  • 能够承受潮湿、振动和极端温度的恶劣条件。



主要技术参数

Item FM-F032
Cable ports 4 Entires(2 on each side)
Number of fiber fusion 24 (bunchy)
Splice tray cores 24 (bunchy)
Number of splice trays(max) 4
Dimension (mm) 485x165x110
Cable diameter(mm) Ф10~Ф22
Max capacity of fiber 96 (bunchy)
Working temperature -40℃~65℃
Insulation resistance >2×104MΩ
Opening Type Anti-removable Screw-Type
Installation Type Aerial
Sealing structure Sticky cincture

注:Fiber-Mart默认安装Aerial,其他也可根据您的要求定制,详情请联系sales@fibre-mart.com。



应用

  • 适用于架空、管道和直埋应用。
  • CATV 环境、电信、客户端环境、运营商网络和光纤网络。



水平(内联)光学接头闭合装置



主要成分

No. Name of components Quantity Usage Remarks
1 Housing 1 set Protecting fiber cable splices in whole
2 Insert plate 2 pairs Fixing the housing 175x56x30(mm)
3 Fiber optic splice tray (FOST) Max 4 trays(bunchy) Fixing heat shrinkable protective sleeve and holding fibers Suitable for: Bunchy:12,24,36,48,72,96(cores)
4 Foundation 1 set Fixing fiber cable, reinforced core and FOST
5 Seal fitting 1 set Sealing between FOSC cover and FOSC bottom
6 Port plug 6pieces Sealing empty ports
7 Pressure testing valve 1 set After injecting air, it is used for pressure testing and sealing testing Configuration as per requirement
8 Earthing deriving device 1 set Deriving metallic parts of fiber cable in FOSC for earthing connection Configuration as per requirement



可选附件和专用工具

No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable protective sleeve   Protecting fiber splices Configuration as per capacity
2 Nylon tie   Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Earthing wire 1 piece Putting through between earthing devices To put through as per actual requirement
7 Abrasive cloth 1 piece Scratching fiber cable
8 Labeling paper 1 piece Labeling fiber
9 Special wrench 3 pieces Fixing bolts, tightening nut of reinforced core
10 Measuring paper 1 piece To measure perimeter of fiber cable, of which the diameter is enlarged with seal tape To measure perimeter with the corresponding measuring paper
11 Buffer tube To be decided by customers Hitched to fibers and fixed with FOST, managing buffer Configuration as per requirement
12 Desiccant 1 bag Put into FOSC before sealing for desiccating air.

注:此价格不包含可选配件和工具,如果您需要,请联系我们 sales@fibre-mart.com 了解详情。
